Deda Superbox DCR handlebar attack

L'Evolution of the current Superbox to the DCR system for complete integration of the cables. 1 attack, 4 assembly. LAttack can be used in 4 different ways to adapt to any cable passage solution in the market: DCR, S-DCR, direct and outside. Together with the Deda dumbbells with DCR system (DEDA INTERNAL CABLE ROUTING) LAttack is the perfect solution for bikes with entirely integrated cables. L'Superbox® attack presents a patented solution that provides two possible solutions for the interior cables passage. The solution with completely internal cable passages (DCR) or semi-integrated (S-Dcr) through a cover that allows L'Installation, adjustment or maintenance without complications for the connections of electrical cables or hydraulic sheaths. Superbox® can be mounted on a traditional 1-1/8 "cannotto and is compatible with 46 mm frame steering tube (per bearing 1- 1/8") or 56 mm (per pad 1.5 "). A series of thicknesses with channels for the passage of cables completes the design of the attack. The thicknesses and the cover are designed to be opened without having to disassemble any cable from the frame for easy adjustment of the steering height. L'Innovative process of forging the attack with the flat shape guarantees better aerodynamics. L’Addition of measures 70 and 80 makes L'Superbox attack the best choice also for MTB and Gravel bikes. Available in POB finish (Polish on Black).

• Material: Aluminum 6061
• Viteria: Black steel
• Attack height: 32 mm; 47 mm (with the cover)
• Corner: 82°
• Handlebar diameter: 31.7 mm
• Cannotto Forcella: 1 1/8 "(28.6mm)
• Weight: 175g (based on one Size 110mm)
• Color: Pob (Polish on Black)

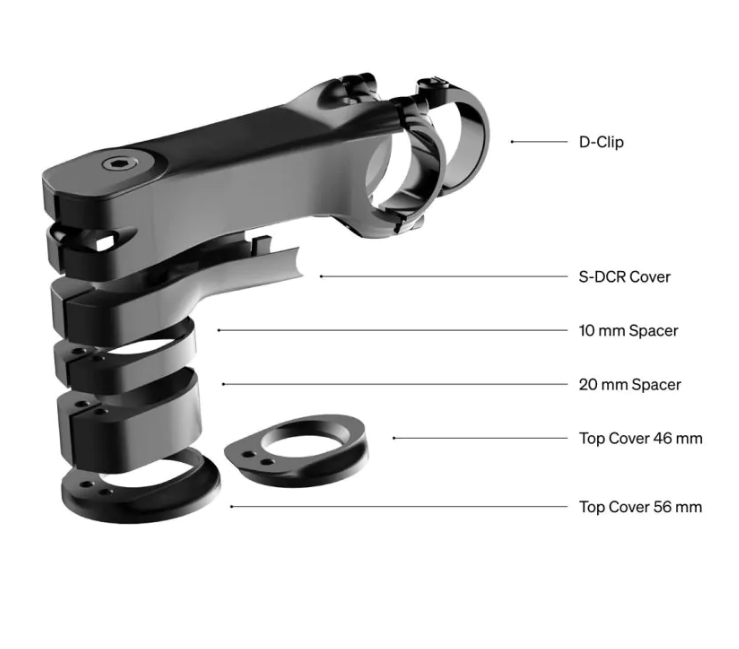

• Accessories included: Topcap, thicknesses and 46mm & 56mm steering topches, D-CLIP insert.
• Notes: The internal caval passage system (DCR) is compatible only with electronic groups (up to 3 cables); the semi-integrated system (S-Dcr) is compatible with any group bikes and configuration (up to 4 cables)

For the assembly of Alanera and Superbox on some bicycle models, a specific plug adapter (Colnago C64 & V3rs) or insert (BMC, Cervélo & Factor) is required.

For the assembly of Alanera and Superbox on some bicycle models, a specific compression ring is required: Bottecchia Emme4 (HDcomprDCrbot); Give vsru (HDcomprDCR-DA); Merida Sculpture (HDcomprDCR-ME); Bianchi Oltre Race, Sprint - Focus Izalco Max - Rose Xlite, Reveal, Backroad (HDcompr -ACROSX).

For Orbea, Specialized, Cannondale, Trek, Arc8 must be used the specific adapter as the first thickness below L'attack. *In the case of Tarmac SL8 it is necessary to use L'Adapter together with the thickness kit and top cover of the first equipment handlebar attack mounted on the SL7.

In the case of Ridley and Colnago V3 (My23), we recommend buying apart from the Top Cap Alanera & Superbox for D-Shape forks (Cod. HDSBXTP-4DX).
